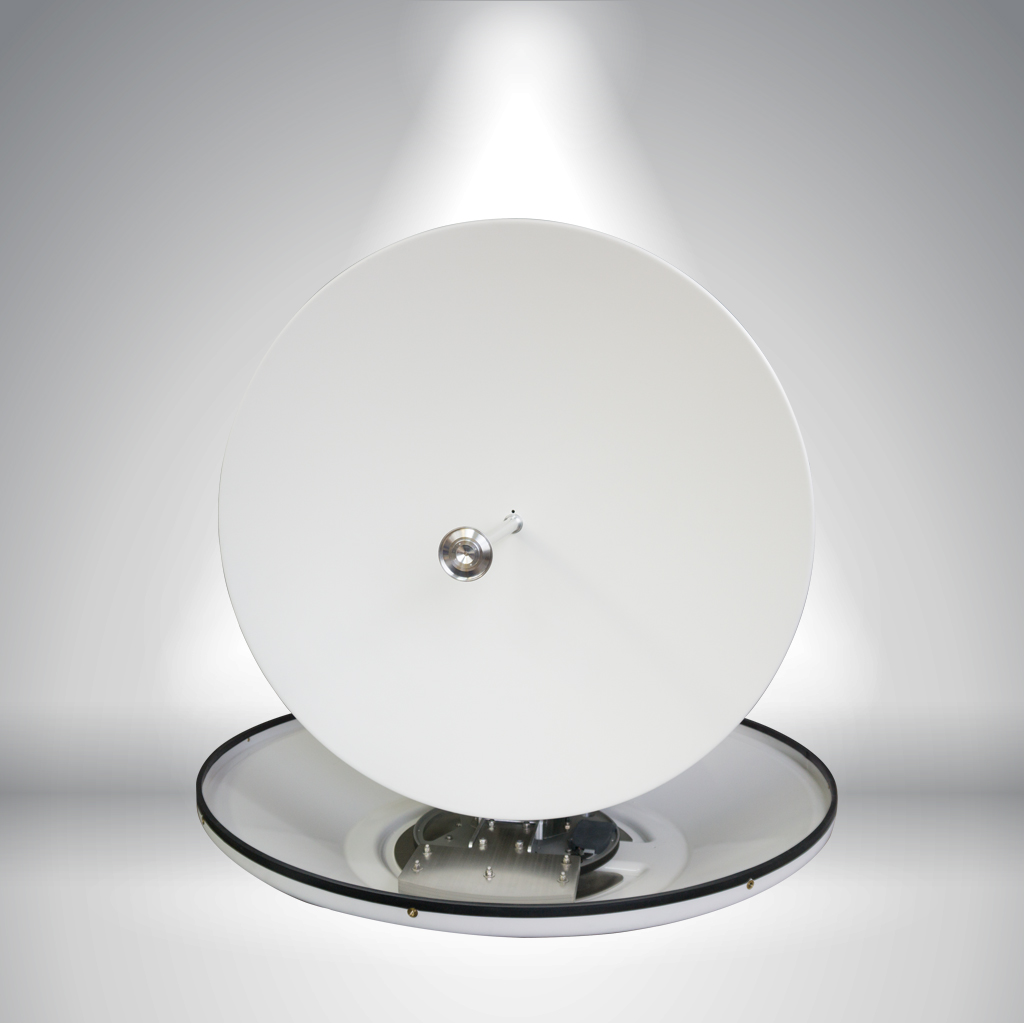

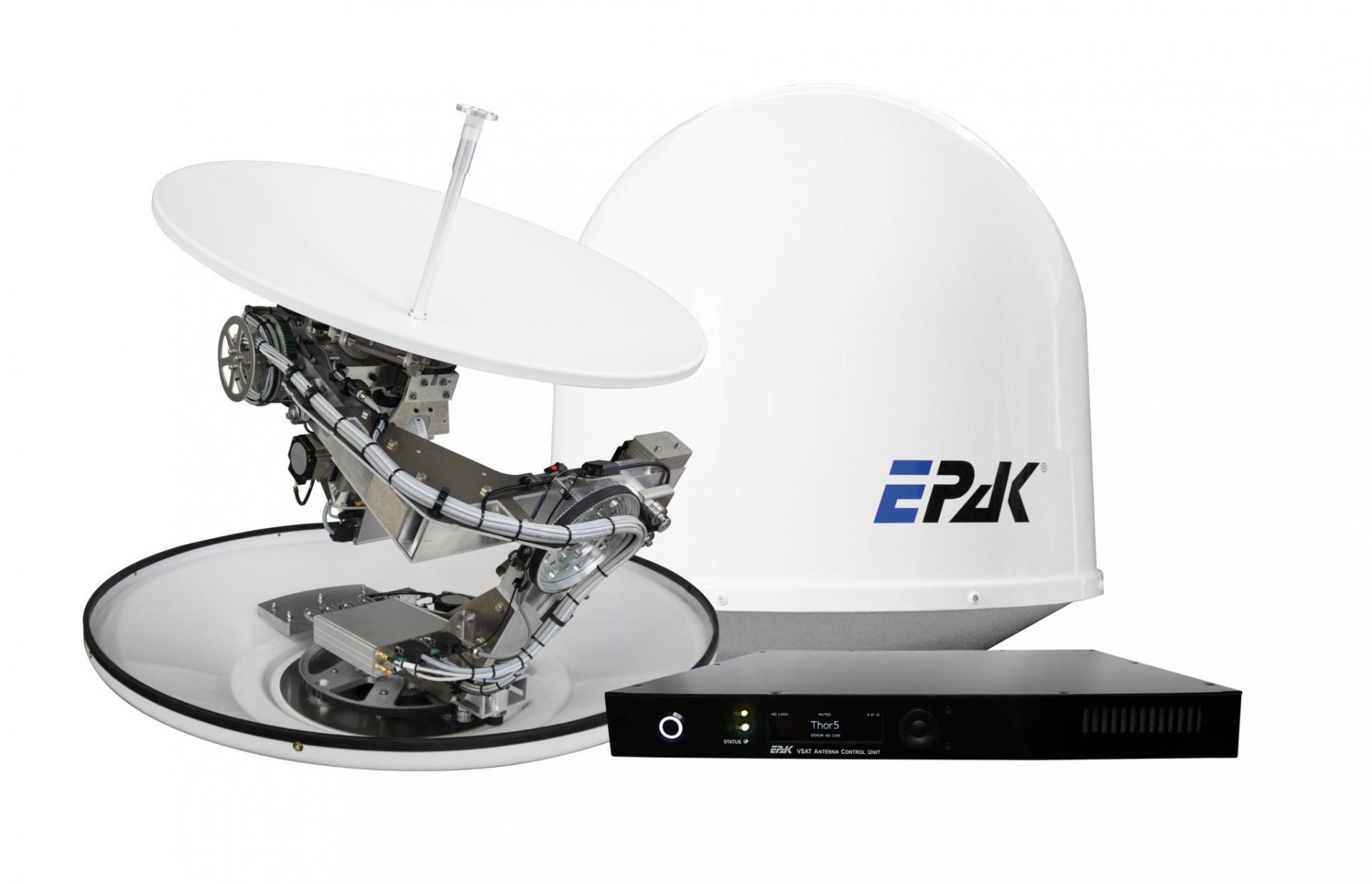

Maritime VSAT antenna with 90 cm dish size and 3-axis motion system for Ka-band services.

The DSi9 Ka PRO is the EPAK maritime VSAT tracking antenna operating in Kaband that brings to you the fastest satellite internet connection.

Due to the Ka-band technology, the DSi9 Ka PRO can reach breath-taking speeds both in download and in upload - via satellite connection. The DSi9 Ka PRO is the perfect solution for high data-volume demands on board: its impressive speed both in download and in upload is ideal for Internet services and applications such as video phone calls, music and video streaming.

Remote Management Access

Access, monitor and control the DSi9 Ka PRO from any location in the world  or set up an automated system diagnostics including event logging.

Web Interface

EPAK VSAT antennas feature an embedded webserver to provide a web user interface for making configurations and accessing live data from the antenna for simplified troubleshooting and monitoring performance.

SIM LTE

You can insert two local SIM cards into the antenna’s control unit to access low-cost, highspeed Internet when a 3G/4G network is available.

Automatic Satellite Acquisition

The acquisition of the satellite is completely automated by DVB-S2-Receiver and Modem confirmation.

Diversity Kit Compatibility

No more blind spots by combining the free line of sight ranges of two antennas in one bundle. That will prevent nearly any loss of satellite signals through blockades.

Solid Hardware

Improved hardware reliability against sea conditions.

KEY FEATURES:

- 3-axis motion system

- Range movement from -15° to +120°

- Tracking speed up to 50°/s

- LTE Plug & Go SIM cards

- LEO, MEO, GEO tracking supported

- Easy to install

- 90 cm dish for high-quality signal reception and transmission

- Electronically switchable in x-pol and co-pol operation

- Compatible with most modems

- Ku-Band / Ka-Band convertible

- VoIP optional

- RF optimized dome
