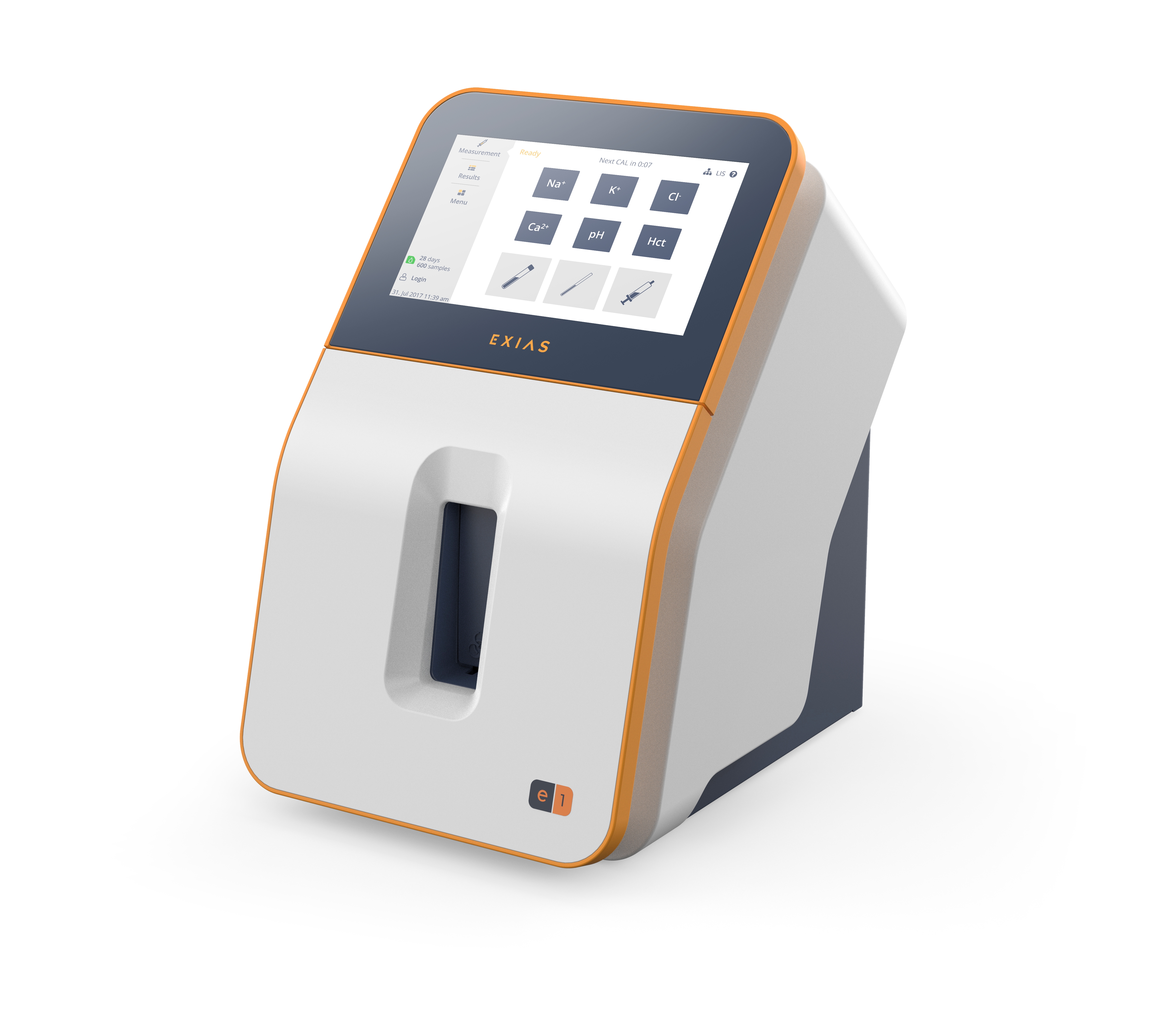

EXIAS e|1 Analyzer
Product Description
The EXIAS e|1 Analyzer is an electrolyte system intended for in-vitro measurements of Na+, K+, Cl-, Ca²+ as well as pH and Hct, in whole blood, serum and plasma. The system uses an all-in-one cartridge that enables a maintenance free operation. Technical excellence and an innovative thick-film sensor technology lead to exceptional operational performance. Robust and clever design with a compact footprint makes the e|1 Analyzer well suited for both point-of-care and laboratory environment.
Operational characteristics
- Parameters: Na+, K+, Cl-, Ca²+, pH, Hct
- Calculated parameters: nCa2+, tHb(c)
- Min. sample volume: 20 μL
- Time to result: 25 s
- Throughput: 80 samples / hour
Sample type
- Whole blood, serum, plasma
Sample container
- Sample tubes, capillaries, syringes
(no adapters required)
Calibration data
- Calibration: 2-point calibration
- Duration: 35 s
Interval: 4, 8, 12 hr
(programmable)
Interface
- Touch display: 7’’ TFT
- Resolution: 800 x 480 px
Additional information
- Built-in thermal printer
- Dimensions: 20 x 31 x 28 cm (W x H x D)
- Weight: 4.0 kg
